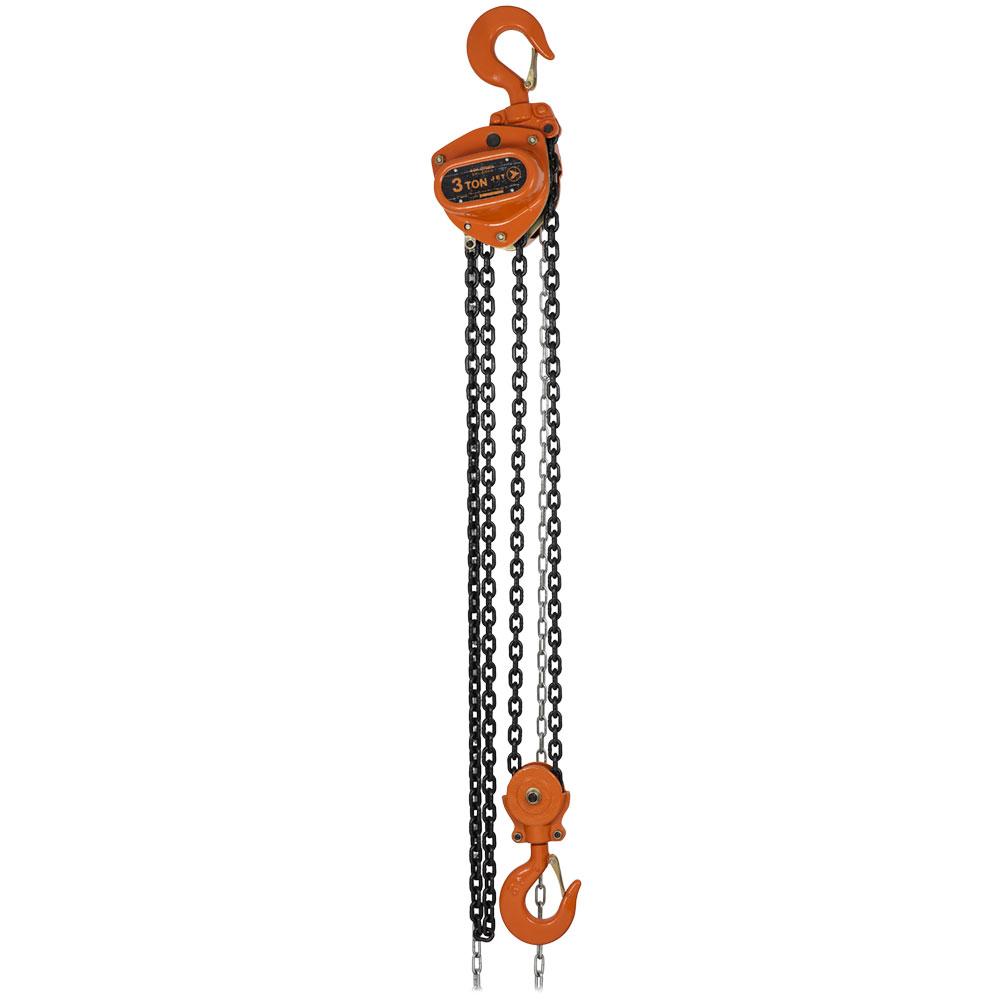

3 Ton 10' Lift KCH Series Chain Hoist - Heavy Duty
$
907
87
/ 1
- Numéro d'article: 101142
- CPU: 00059629869376
- Disponibilité:
Quantité:
Ajoutez au panier
Ajoutez au Estimate
Ajouter à la liste de souhaits
Comparer l'article
vue d'ensemble
The JET VLP series chain hoists are built using high quality and durable components that allow you to elevate, suspend and lower loads safely and easily.
Spécifications
Détails
Catégorie industriel:
Manutention des matériaux
Sous catégorie industriel:
Palans et chariots
Sous type industriel:
Treuils à chaîne manuels
Brand:
JET
Capacity (lb.):
6,600 lb
Capacity (T):
3 T
Catégorie de fabricant:
Palans à chaîne
Certification:
ASME B30.16 standards|ISO 9001-2000 certified factory
Country of Origin:
CN
Duty Level:
Heavy Duty
Each Qty.:
1
Force Required to Lift:
79 lb
Head Room:
20"
HTS (Harmonized Tariff Schedule) Code:
8425.19.00.10
Indice de sous-groupe:
1691
Inner Pack Qty.:
0
Item Length (inches):
20.70
Item Weight (lbs):
30.4000
Length of Hand Chain Pulled to Lift Load to 1':
114'
Lift (ft.):
10'
Load Chain Diameter:
7.1 mm
Load Chain Grade:
100
Min. Distance Between Hooks:
20"
Model Number:
VLP-150-10
Number of Falls:
2
Number of Safety Hooks:
2
Package Quantity:
1
Package UPC:
10059629886066
spec1:
Poids dexpédition
Special Features:
Non-asbestos brake discs
UOM:
EA
UPC:
059629886069
value1:
53.7 lb (24.4 kg)
Autres détails
Galvanized chain, hub, lever switch and inside plates is resistant to corrosion and provides long service life
Hoists are load tested to 150% of rated capacity to ensure safe use and operation
Short lever length allows for easier access into confined work areas
Special heavy-duty brake pads last 5x longer than traditional styles
Stamped steel housing protects gears and brake mechanism from damage
